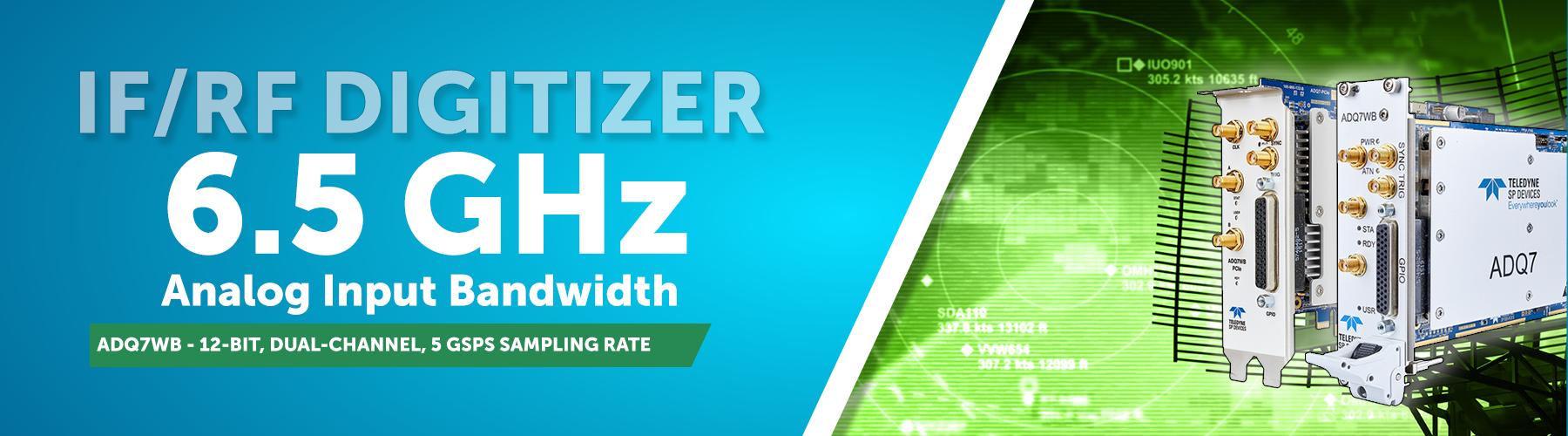

ADQ7WB: High-Performance Dual-Channel Digitizer for RF Signal Capture

5/13/2024

ADQ7WB is a powerful 12-bit dual-channel digitizer designed for capturing RF signals up to 6.5 GHz. It excels in applications like radar, satellite monitoring, distributed fiber optic sensing, SS-OCT, and more. Here are a few highlights:

12-bit, dual-channel, with 5 GSPS sampling rate per channel
AC-coupled with 6.5 GHz analog input bandwidth
Excellent spurious-free dynamic range (SFDR)
Peer-to-peer streaming at 7 Gbyte/s to CPU or GPU for post-processing
Available in PCIe and PXIe form factors
Optional FPGA firmware development kit for custom real-time signal processing
Optional digital down-conversion firmware (FW2DDC) featuring:
- Two DDCs including mixers and decimation
- FIR filter for noise reduction and channel equalization
- Continuous acquisition of up to 1 GHz instantaneous signal bandwidth
- Precise triggering and synchronized sampling for multi-channel systems
Hardware, software, firmware customization offered to OEM customers
