Ideal for applications such as Thomson scattering, phased-array radars, multi-channel single-shot measurements, MIMO, and more

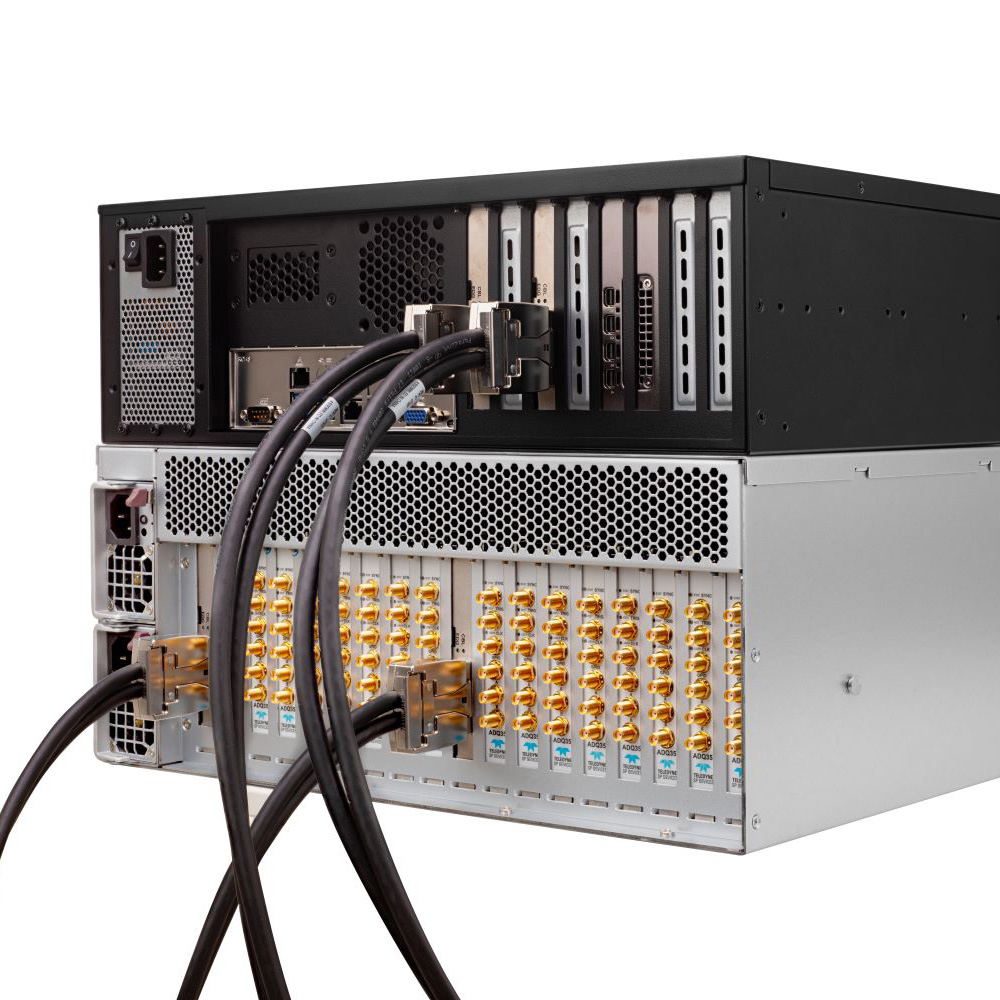

Turnkey PCIe multi-channel data acquisition bundle consisting of
-
Configurable industrial PC

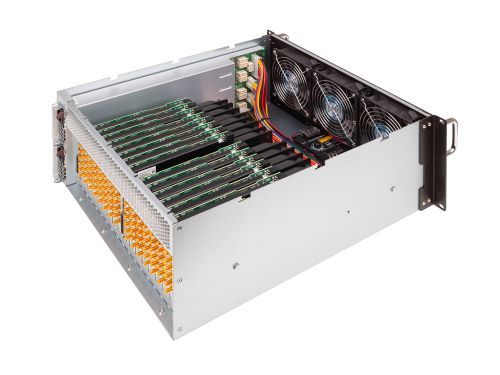

- One or two 16-slot PCIe expansion chassis

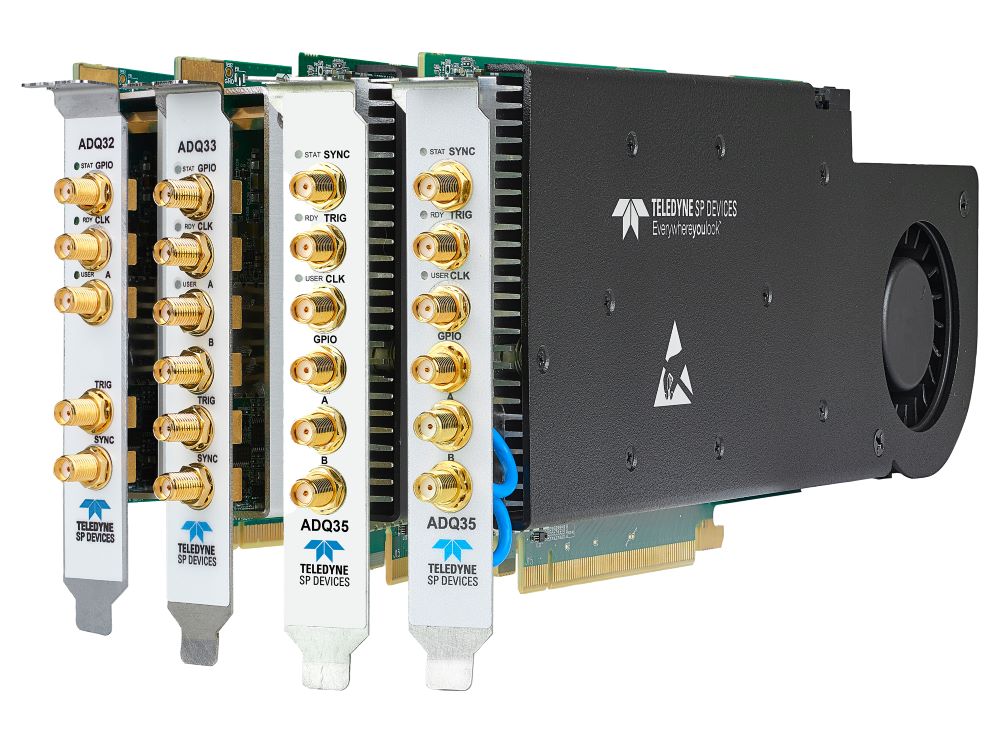

- Up to 16 digitizers with up to 32 channels per chassis
Feature enhancement
- Add solid-state disks (SSDs) for high-speed data storage
- Add graphics processing units (GPUs) for real-time processing
Accurate synchronization
- Use daisy-chain to synchronize the channels with +/- 50 picosecond accuracy
- Multiple DPS16-PCIe systems can also be daisy-chained
Up to 56 Gbyte/s system-level data transfer rate to host PC
Up to 84 Gbyte/s peer-to-peer streaming to GPU per chassis
Contact us to discuss system configuration
