Ideal for applications such as beam position monitoring, satellite monitoring, real-time wideband signal processing, and more.​

Turnkey PCIe multi-channel data acquisition bundle consisting of​

  • ​Configurable industrial PC
  •  Up to 7 digitizers with up to 14 channels per PC
Feature enhancement​
  •  Add solid-state disks (SSDs) for high-speed data storage
  •  Add graphics processing units (GPUs) for real-time processing
Accurate synchronization
  •  Use daisy-chain to synchronize the channels with ±50 picosecond accuracy
  •  Multiple DPS7-PCIe systems can also be daisy-chained
Up to 80 Gbyte/s syste​m-level data transfer rate to host PC
  • Peak rate 14 Gbyte/s per slot​

Contact us to discuss system configuration
​
​
​

​De​scription

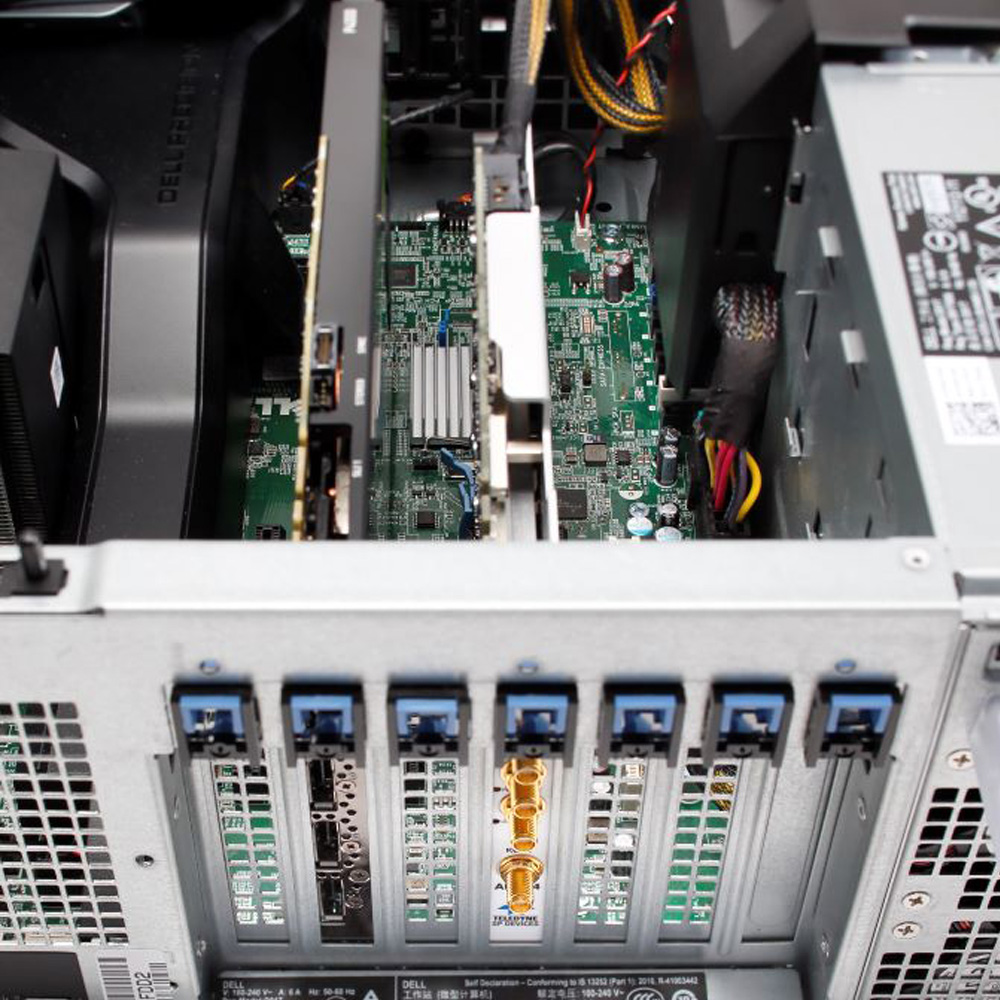

The DPS7-PCIe is a comprehensive multi-channel data acquisition system designed for precise synchronized sampling across multiple digitizers, achieving an accuracy of ±50 picoseconds. It features a customizable industrial PC integrated with up to seven digitizers from Teledyne SP Devices' ADQ3-series. The system incorporates third-party hardware optimized for peak performance with these digitizers. Each unit is configured, assembled, and rigorously tested in-house to meet specific customer requirements.​


​


​​​​​
​
​

Industrial PC

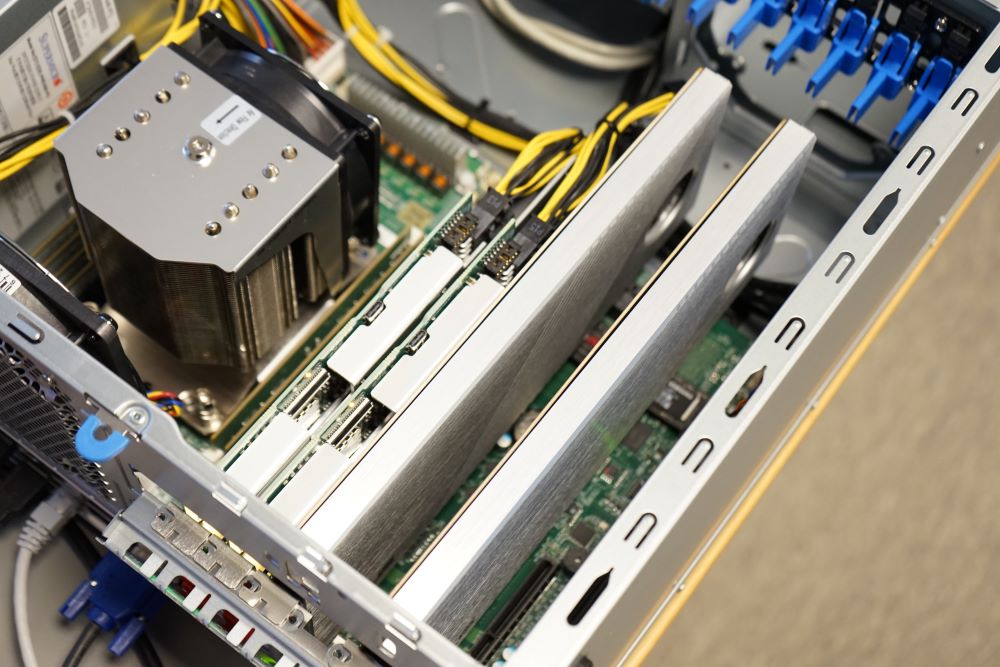

The host PC acts as the central hub for system-level configuration, control, data processing, and analysis. It is built around a high-performance motherboard, such as the Asrock GENOAD8X-2T/BCMI, which features seven Gen5 x16 PCIe slots. These slots can accommodate a combination of ADQ3-series digitizers, graphics processing units (GPUs) for post-processing, and solid-state disk (SSD) modules for storage.

The DPS7-PCIe supports peer-to-peer (P2P) streaming, enabling digitizers to transfer data directly to GPUs and/or SSDs with minimal involvement from the host PC. This capability is advantageous as it frees up the host CPU and RAM for other tasks.​

Each digitizer support data transfer rates of up to 14 Gbytes/s. However, processing aggregate data rates that are too high can become impractical or even impossible. While system-level data transfer rates of up to 80 Gbytes/s are supported, please contact us for assistance with system configuration and feasibility studies.​

 ​​​
​​​​​​​​​​​​​​

The Digitizer Studio software simplifies system operation by providing stand-alone configuration, measurement, and display capabilities through a user-friendly graphical user interface (GUI). Alternatively, users can employ custom software for complete customization to meet specific application needs and preferences. Both Digitizer Studio and user-developed software can run on Windows or Linux, with either operating system pre-installed prior to delivery.​​

ADQ3-series digitizers

Teledyne SP Devices' ADQ3-series digitizers are high-performance, 12-bit digitizers tailored for applications demanding high-speed data acquisition. These digitizers offer sampling rates up to 10 GSPS and feature an open FPGA for custom real-time signal processing. With built-in peer-to-peer streaming to GPUs at speeds up to 14 Gbytes/s, they are optimized for OEM integration. They support a range of applications, including mass spectrometry, distributed fiber optic sensing, particle physics, radar, and more. The ADQ3-series also includes advanced firmware options and a user-friendly interface for efficient data collection and analysis. Please note that the DPS7-PCIe is incompatible with the ADQ36, as it is only available in PXIe form factor.​​

​​​
​​​​​​​
​
Configuration examples

A wide variety of third-party PCIe modules are compatible with the DPS7-PCIe. Below are a few examples of hardware that we have tested and used in existing systems. However, many more options are available, so please contact us to discuss your specific requirements.

  • PC motherboards: Asrock GENOAD8X-2T/BCM
  • PC central processing units (CPUs): AMD EPYC™ Series
  • Graphics processing units (GPUs): NVIDIA RTX A400/A2000/A4000, NVIDIA RTX 4000 Ada
  • Solid-state disks (SSDs): Samsung 990 Pro, Kioxia CD8​

    ​
​​
