High-perform​​ance 10-bit, 1 GSPS digitizer

  • 10 bits vertical resolution
  • 1 GSPS sampling rate per channel
  • 8 Input channels
  • DC-coupled with up to 500 MHz input bandwidth (5 Vpp input range)
  • Programmable DC-offset
  • 1 Gbyte onboard memory
  • Open FPGA for custom real-time signal processing requires DEVDAQ
  • PXIe, MTCA.4 form factors
  • For product technical specifications (see the datasheet)
  • How to use and configure the product and output the data (see the users guide)​
DatasheetUser Guide

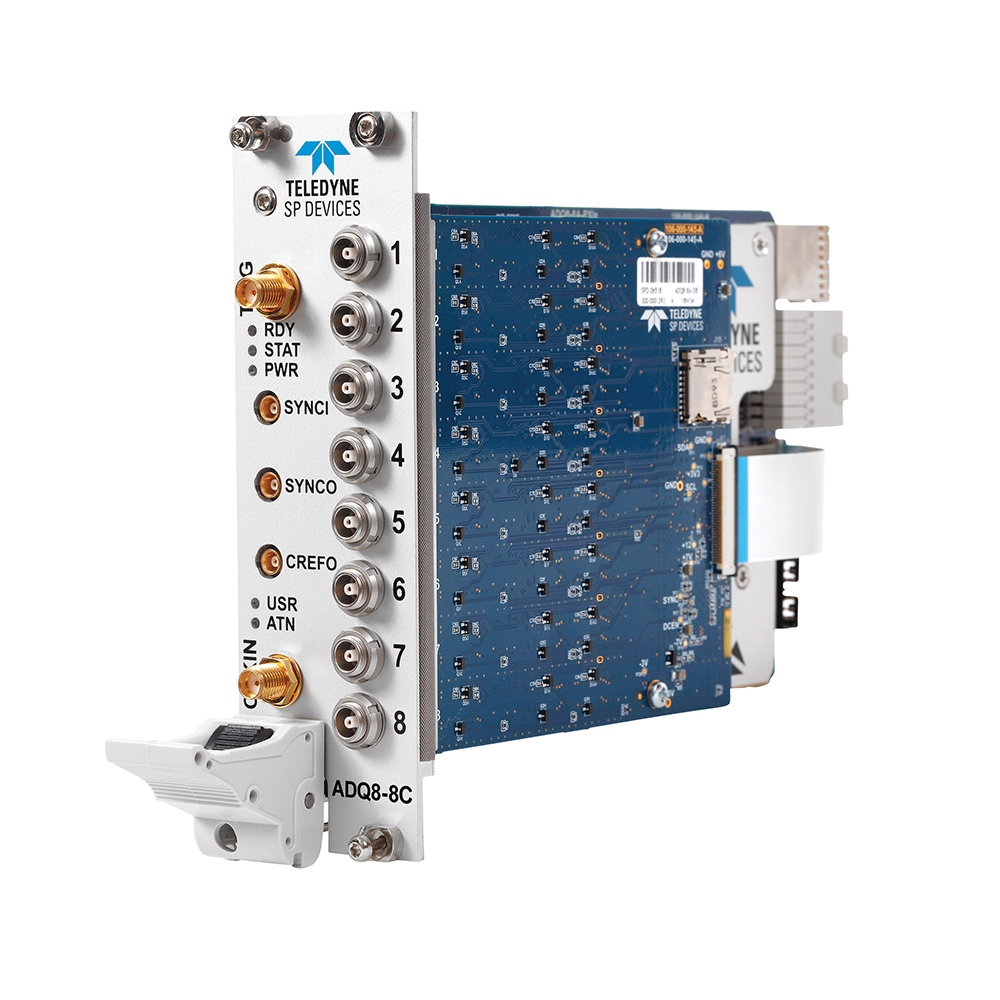

With compact modular form factors, 8 channels per board, and high-precision multi-board synchronization capabilities, ADQ8-8C is ideal for massive multi-channel implementations.​

DC-coupled with programmable DC-offset, input voltage range (option VG), and input impedance (50Ω and 1 MΩ). This, combined with high analog input bandwidth, allows ADQ8-8C to support a wide range of sensors.

ADQ8-8C features an on-board powerful Xilinx FPGA with resources available for customized real-time digital signal processing.

Options ​Comment​
Hardware Options​​​
Host PC interf​ace

Firmware options
FWDAQ Always included. Default data acquisition firmware.
DEVDAQ Optional FPGA development kit based​​ on FWDAQ.

Additional accessories
W5Y Optional 2-year warranty extension (and 5 years in total). ​

Digitizer Studio Always included. Software for control and configuration. ​
