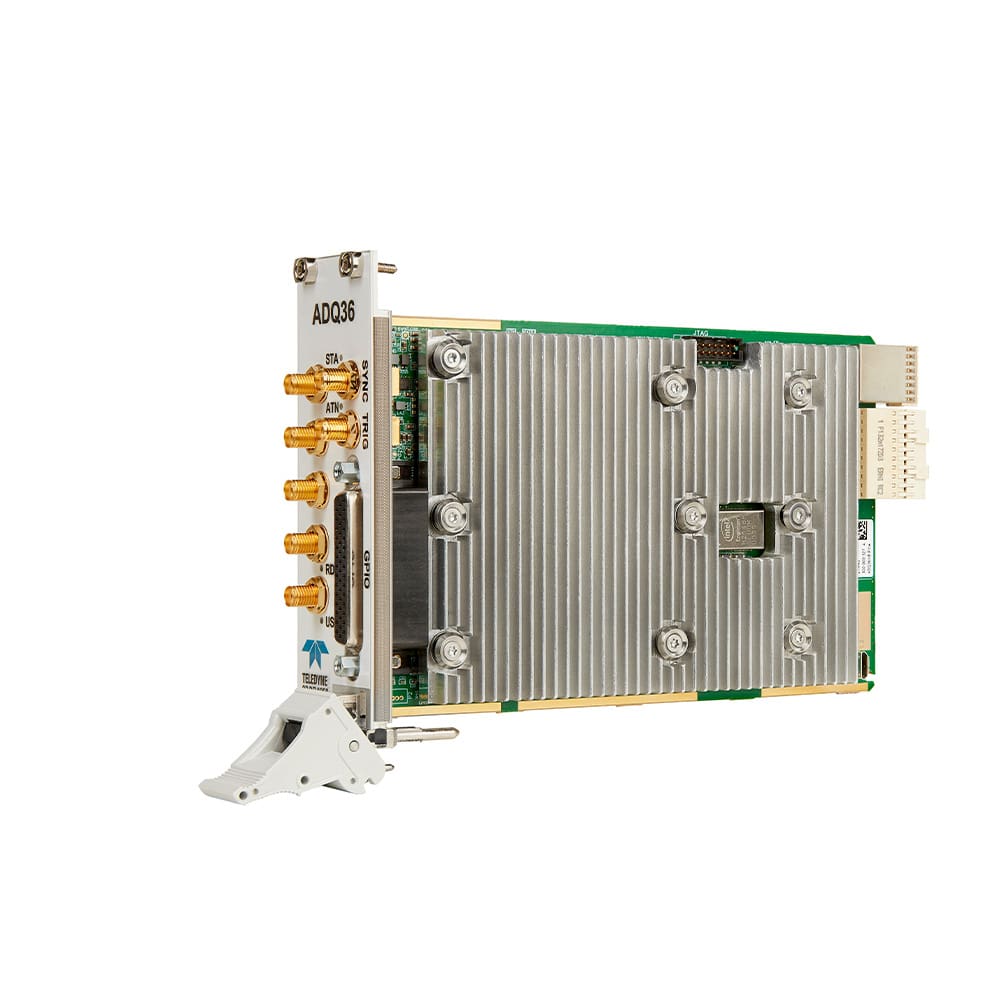

High-perform​​ance 12-bit, 5 GSPS digitizer

  • 12 bits vertical resolution
  • Up to 5 GSPS sampling rate
  • 4 channels at 2.5 GSPS or 2 channels at 5 GSPS (software-selectable)
  • DC-coupled with up to 2.5 GHz input bandwidth (0.5 Vpp input range​)
  • Programmable DC-offset
  • 8 Gbyte onboard memory
  • Open FPGA for custom real-time signal processing requires DEVDAQ
  • Application-specific firmware options
  • Peer-to-peer streaming to GPU at 7 Gbyte/s
  • Hardware triggers and GPIO
  • PXIe form factor
  • For product technical specifications (see the datasheet)
  • How to use and configure the product and output the data (see the users guide)​
DatasheetUser Guide


Description

ADQ36 offers software-selectable two- or four-channel configuration with 5 or 2.5 GSPS sampling rates respectively. The programmable DC-offset makes it ideal for sampling unipolar signals. The open onboard Xilinx Kintex Ultrascale KU115 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP). ADQ36 supports peer-to-peer streaming of up to 7 Gbyte/s either to the host PC or to graphics processing units (GPUs).

  • LiDAR
  • Beam Position Monitor
  • High energy physics​

Options ​Comment​
Hardware Options​​​
PXIe Host PC interf​ace​


Firmware options
FWDAQ Always included. Default data acquisition firmware.
FWATD​ Optional waveform averaging firmware. ​
FWPD​ Optional pulse detection firmware. ​
DEVDAQ Optional FPGA development kit based​​ on FWDAQ.


Additional accessories
W5Y Optional 2-year warranty extension (and 5 years in total). ​


 Software
Digitizer Studio Always included. Software for control and configuration. ​
