High-perform​​ance 14-bit, 1.6 GSPS digitizer

  • 14 bits vertical resolution
  • 1.6 GSPS sampling rate
  • AC-coupled with up to 680 MHz input bandwidth (2.2 Vpp input range)​
  • 512 MSamples onboard memory
  • Open FPGA for custom real-time signal processing requires DEVDAQ
  • Hardware triggers and GPIO
  • USB 3.0, PXIe, PCIe, Micro-TCA form factors
  • For product technical specifications (see the datasheet)
  • How to use and configure the product and output the data (see the users guide)​

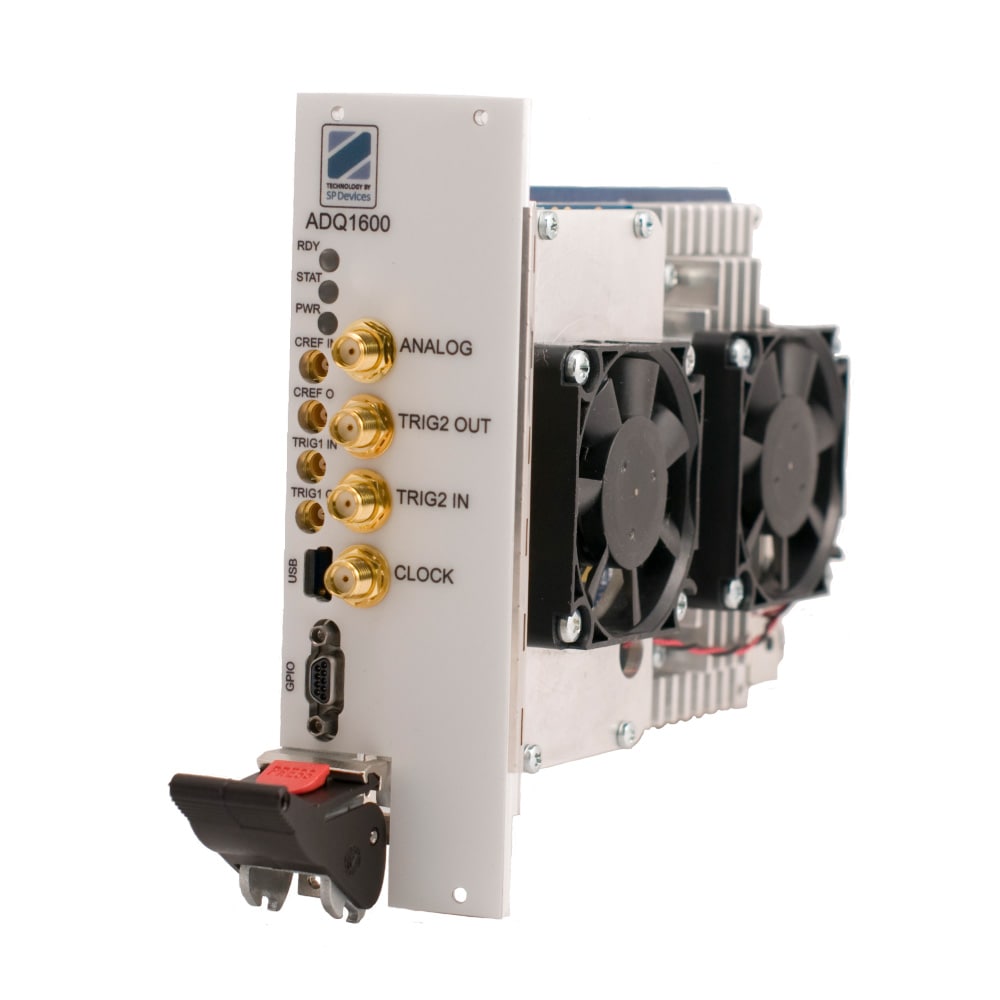

The ADQ1600TD is a world-leading 14 bit digitizer optimized for time-domain pulse capture. With its unique 1600 MSPS capture rate, enabled by SP Devices’ ADC interleaving technology ADX, the ADQ1600TD opens for demanding measurements such as time-domain pulse capture and high-speed data recording.

The AFE of the ADQ1600TD is AC-coupled and optimized for low background noise over a large bandwidth. The adjustable bias together with the Digital Baseline Stabilization (DBS) technology increases the dynamic range for unipolar pulses.

The digitizer connects to the host via a high-speed USB 3.0 cable for easy-to-use standalone operation. PXI Express or MTCA.4 µTCA interface is available for systems integration as a modular instrument. A PCIe version for integration into a PC is also available. All interface types allows for streaming of data at high transfer rates.​

Options ​Comment​
Hardware Options​​
USB 3.0, PXIe, PCIe, Micro-TCA Host PC interf​ace

Firmware options
FWDAQ Always included. Default data acquisition firmware.
DEVDAQ​ Optional FPGA development kit based​​ on FWDAQ.

Additional accessories
W5Y Optional 2-year warranty extension (and 5 years in total). ​

ADCaptureLab Always included. Software for control and configuration. ​
