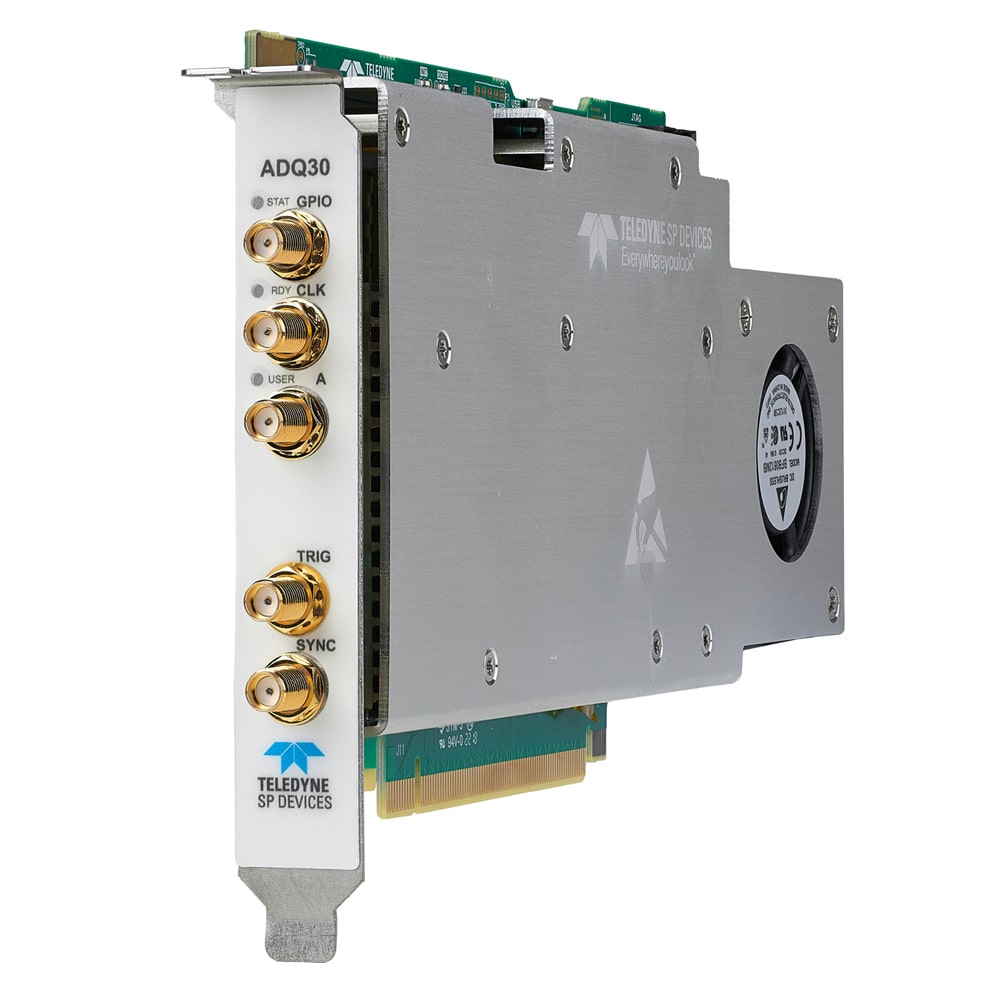

High-perf​orm​​ance 12-bit, 1 GSPS digitizer

  • 12 bits vertical resolution
  • 1 GSPS sampling rate
  • DC-coupled with up to 1 GHz input bandwidth (0.5 Vpp input range​)
  • Programmable DC-offset
  • 8 Gbyte onboard memory
  • Open FPGA for custom real-time signal processing requires DEVDAQ
  • Application-specific firmware options
  • Peer-to-peer streaming to GPU at 7 Gbyte/s
  • Hardware triggers and GPIO
  • PCIe form factor
  • For product technical specifications (see the datasheet)
  • How to use and configure the product and output the data (see the users guide)​
DatasheetUser Guide
​
​
​
​Description

ADQ30 offers a single-channel configuration with 1 GSPS sampling rate. The programmable DC-offset makes it ideal for sampling unipolar signals.
The open onboard AMD Kintex Ultrascale KU040 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP).
ADQ30 supports peer-to-peer streaming of up to 7 Gbyte/s either to the host PC, or to graphics processing units (GPUs).​

Options ​Comment​
Hardware Options​​
PCIe Host PC interf​ace


Firmware options
FWDAQ Always included. Default data acquisition firmware.
FWATD ​Optional waveform averaging firmware
FWPD Optional pulse detection firmware.
DEVDAQ Optional FPGA development kit based​​ on FWDAQ.


Additional accessories
W5Y Optional 2-year warranty extension (and 5 years in total). ​


 Software
Digitizer Studio Always included. Software for control and configuration. ​
​​
