High-perform​​ance 12-bit, 1 GSPS digitizer

  • 12 bits vertical resolution
  • 1 GSPS sampling rate per channel
  • DC-coupled with 0.5 up to 1 GHz input bandwidth (Vpp input range)​​
  • Programmable DC-offset
  • 8 Gbyte onboard memory
  • Open FPGA for custom real-time signal processing requires DEVDAQ
  • Application-specific firmware options
  • Peer-to-peer streaming to GPU at 7 Gbyte/s
  • Hardware triggers and GPIO
  • PCIe form factor
  • For product technical specifications (see the datasheet)
  • How to use and configure the product and output the data (see the users guide)​
DatasheetUser Guide

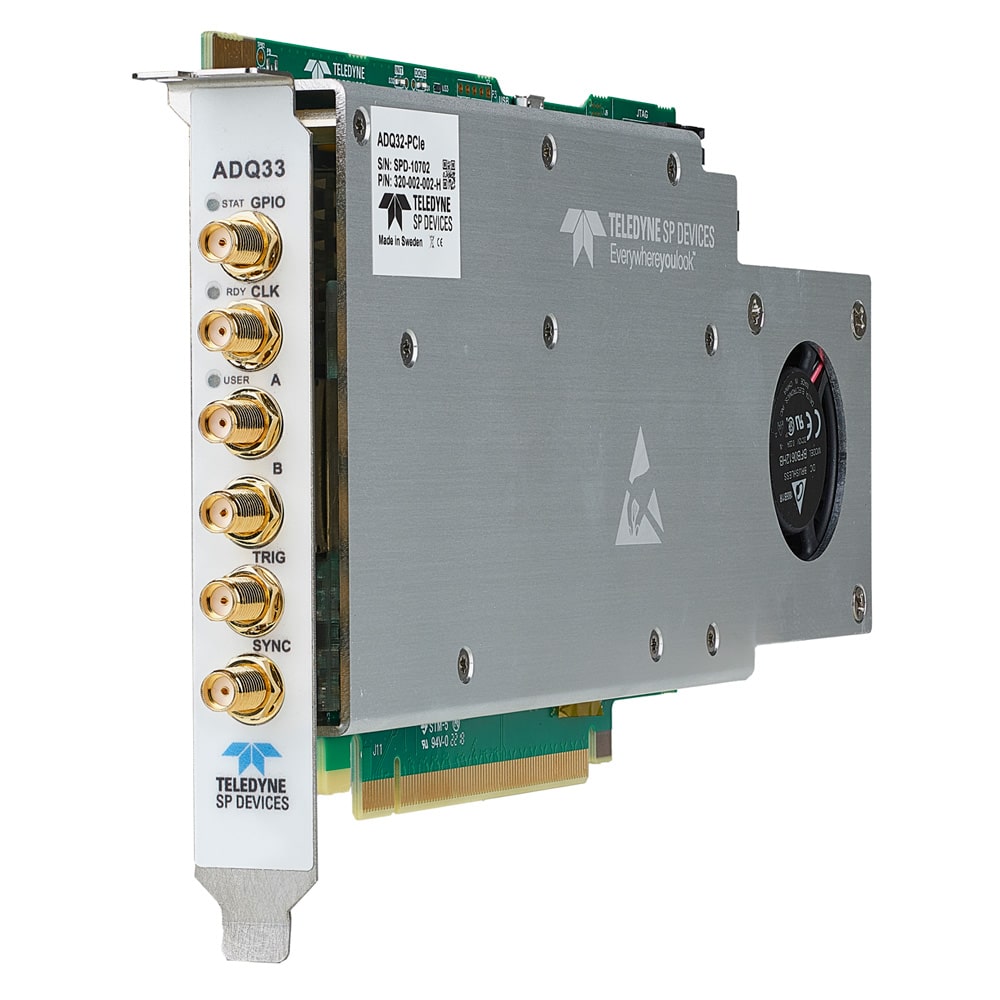

ADQ33 offers a two-channel configuration with 1 GSPS sampling rate. The programmable DC-offset makes it ideal for sampling unipolar signals. The open onboard Xilinx Kintex Ultrascale KU040 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP). ADQ33 supports peer-to-peer streaming of up to 7 Gbyte/s either to the host PC or to graphics processing units (GPUs).

Options ​Comment​​
Hardware Options​​​
PCIe Host PC interface

Firmware options
FWDAQ Always included. Default data acquisition firmware.
FWATD Optional waveform averaging firmware. ​
FWPD Optional pulse detection firmware. ​
DEVDAQ Optional FPGA development kit based​​ on FWDAQ.

Additional accessories
W5Y Optional 2-year warranty extension (and 5 years in total). ​

Digitizer Studio Always included. Software for control and configuration. ​
