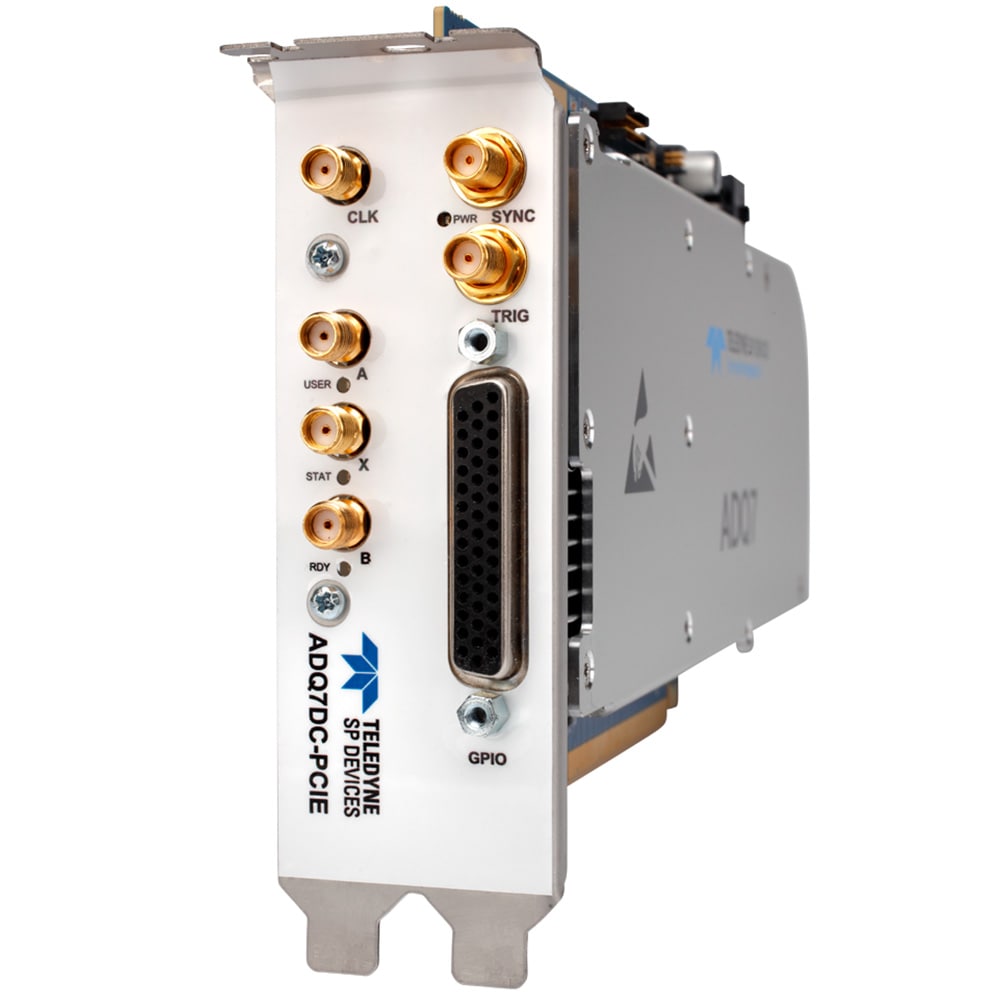

High-perform​​ance 14-bit, 10 GSPS digitizer

  • 14 bits vertical resolution
  • 2 channels at 5 GSPS or 1 channel at 10 GSPS (software-selectable)
  • DC-coupled with up to 3 GHz input bandwidth (1 Vpp input range)
  • Programmable DC-offset
  • 4 Gbyte onboard memory
  • Open FPGA for custom real-time signal processing requires DEVDAQ
  • Application-spec​ific firmware options
  • Peer-to-peer streaming to GPU at 7 Gbyte/s
  • Hardware triggers and GPIO
  • PCIe, PXIe, USB3.0, MTCA.4, 10 GbE form factors
  • For product technical specifications (see the datasheet)
  • How to use and configure the product and output the data (see the users guide)
DatasheetUser Guide


With 14 bits and 10 GSPS, ADQ7DC improves the resolution in high-sampling rate applications beyond what was previously possible. This performance-boost has effectively helped our customers overcome performance trade-offs and have led to significant advances in many applications. ADQ7DC can be operated in either single- or dual-channel mode with 10 or 5 GSPS sampling rate respectively.

The DC-coupled front-end supports variable DC-offset and contains a user-programmable digital noise-reduction filter. It also offers 3 GHz analog input bandwidth and therefore supports a wide range of sensors and applications.

Stand-alone firmware packages simplify operation and offer time-savings by providing a rich set of real-time application-specific functions without any need for FPGA firmware development.

Options ​Comment​​
Hardware Options​​​​
PCIe, PXIe, USB3.0, MTCA.4, 10 GbE
Host PC interf​ace

Firmware options​
FWDAQ Always included. Default data acquisition firmware.​
FWATD Optional w​aveform averaging firmware. ​
FWPD​ Optional pulse detection firmware.
FW2DDC​ Optional digital downconversion firmware. ​
DEVDAQ​​ Optional FPGA development kit based​​ on FWDAQ.

Additional accessories
W5Y Optional 2-year warranty extension (and 5 years in total). ​

Digitizer Studio Always included. Software for control and configuration. ​
