High-perform​​ance 12-bit, 5 GSPS​ digitizer

  • 12 bits vertical resolution
  • 2 channels at 2.5 GSPS or 1 channels at 5 GSPS (software-selectable) with option S2G5
  • 2 channels at 2 GSPS or 1 channels at 4 GSPS (software-selectable) with option S2G0
  • DC-coupled with up to 2.5 GHz input bandwidth (0.5 Vpp input range​)
  • Programmable DC-offset
  • 8 Gbyte onboard memory
  • Open FPGA for custom real-time signal processing requires DEVDAQ
  • Application-specific firmware options
  • Peer-to-peer streaming to GPU at 7 Gbyte/s
  • Hardware triggers and GPIO
  • PCIe form factor
  • For product technical specifications (see the datasheet)
  • How to use and configure the product and output the data (see the users guide)​
DatasheetUser Guide

Description

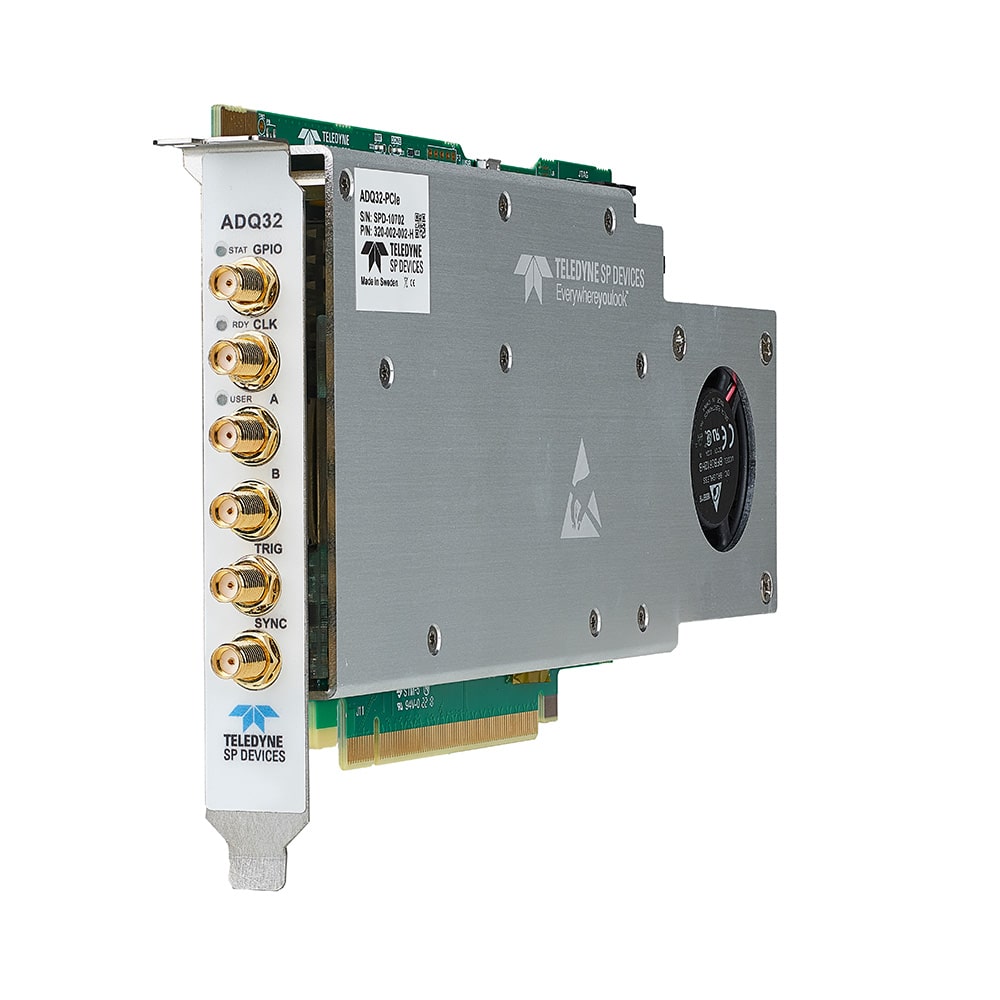

ADQ32 is a fourth-generation 12-bit digitizer with an open field-programmable gate array (FPGA). It is optimized for OEM integration in the most computationally demanding applications and provides built-in peer-to-peer streaming to graphics processing units (GPU) at 7 Gbyte/s.​

Options S2G0 S2G5​​​​​​ ​Comment​
Hardware options​​​
BW1G0 ✓​​​​ Default analog input bandwidth, 1 GHz.​
BW2G5 ✓​ Optional bandwidth extension, 2.5 G​Hz.
PCIe Default form factor (interface)​.


Firmware options
FWDAQ ✓​ Always included. Default data acquisition firmware.
FWATD Optional waveform averaging firmware. ​
FWPD Optional pulse detection firmware. ​
LICPDRX ✓​ Optional license for dual-gai​n (PDRX) channel combination.​
DEVDAQ ✓​ Optional FPGA development kit based​​ on FWDAQ.


Additional accessories
W5Y Optional 2-year warranty extension (and 5 years in total). ​


 Software
Digitizer Studio Always included. Software for control and configuration. ​
